Carnival ball game using Arduino

 INTRODUCTION

We have all played the evergreen carnival games, who doesn't love them?! Now you can flaunt your skills among your friends by presenting an unmatched ball game. This blog has everything you need to do!

ABOUT THIS PROJECT

In this unbeatable game we control the motor on which the pinion and rack is placed using Ultrasonic sensors. As the ball approaches the sensors it detects it and makes the motor to rotate which displaces the rack on which the cup is placed, so that the ball never hits the cup.

COMPONENTS REQUIRED:

Arduino UNO

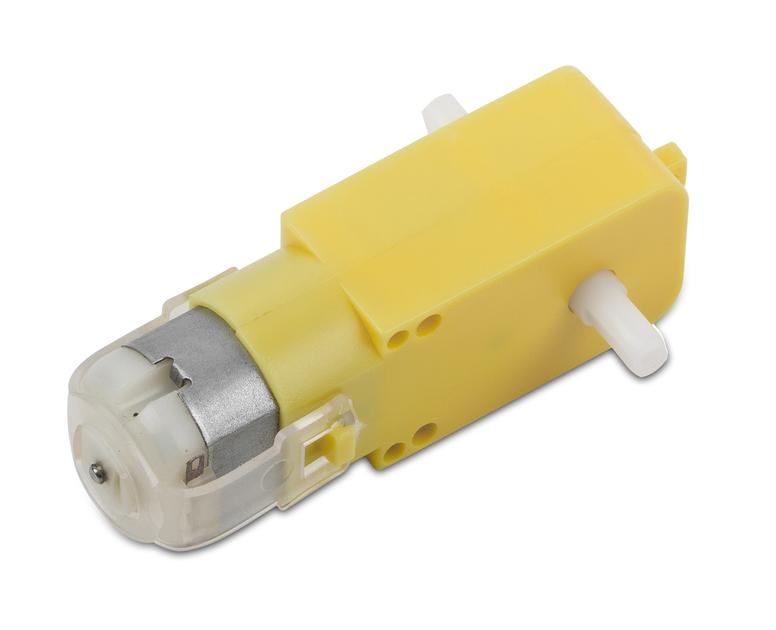

DC Motor






Rack and pinion






Motor driver






Ultrasonic sensors








How it looks;





















CODE:


#define trigPin1 2

#define echoPin1 3

#define trigPin2 5

#define echoPin2 4

const int motorPin1  = 6;  // Pin 14 of L293

const int motorPin2  = 7;  // Pin 10 of L293



long duration, distance, RightSensor,LeftSensor;


void setup()

{

Serial.begin (9600);

pinMode(trigPin1, OUTPUT);

pinMode(echoPin1, INPUT);

pinMode(trigPin2, OUTPUT);

pinMode(echoPin2, INPUT);

pinMode(motorPin1, OUTPUT);

pinMode(motorPin2, OUTPUT);




}


void loop() {

SonarSensor(trigPin1, echoPin1);

RightSensor = distance;

SonarSensor(trigPin2, echoPin2);

LeftSensor = distance;


Serial.print(" LEFT ");

Serial.print(LeftSensor);

Serial.print(" - RIGHT");


Serial.println(RightSensor);

 if (RightSensor< 50 || LeftSensor < 50){

     Serial.println("Ball is inside the ring");



    digitalWrite(motorPin1, HIGH);

    digitalWrite(motorPin2, LOW);

    delay(500);

    digitalWrite(motorPin1, LOW);

    digitalWrite(motorPin2, LOW);

    delay(500);

    digitalWrite(motorPin1, LOW);

    digitalWrite(motorPin2, HIGH);



    delay(500);

    digitalWrite(motorPin1, LOW);

    digitalWrite(motorPin2, LOW);





  }

  else{

    Serial.println("no ball");



  }

}


void SonarSensor(int trigPin,int echoPin)

{

digitalWrite(trigPin, LOW);

delayMicroseconds(1);

digitalWrite(trigPin, HIGH);

delayMicroseconds(5);

digitalWrite(trigPin, LOW);

duration = pulseIn(echoPin, HIGH);

distance = (duration/2) / 29.1;


}


After uploading the code to Arduino the desired output is obtained.

Refernces:

https://www.arduino.cc/en/software

https://www.theengineeringprojects.com/2015/02/interfacing-multiple-ultrasonic-sensor-arduino.html

https://create.arduino.cc/projecthub/Isaac100/getting-started-with-the-hc-sr04-ultrasonic-sensor-036380
